Project Description

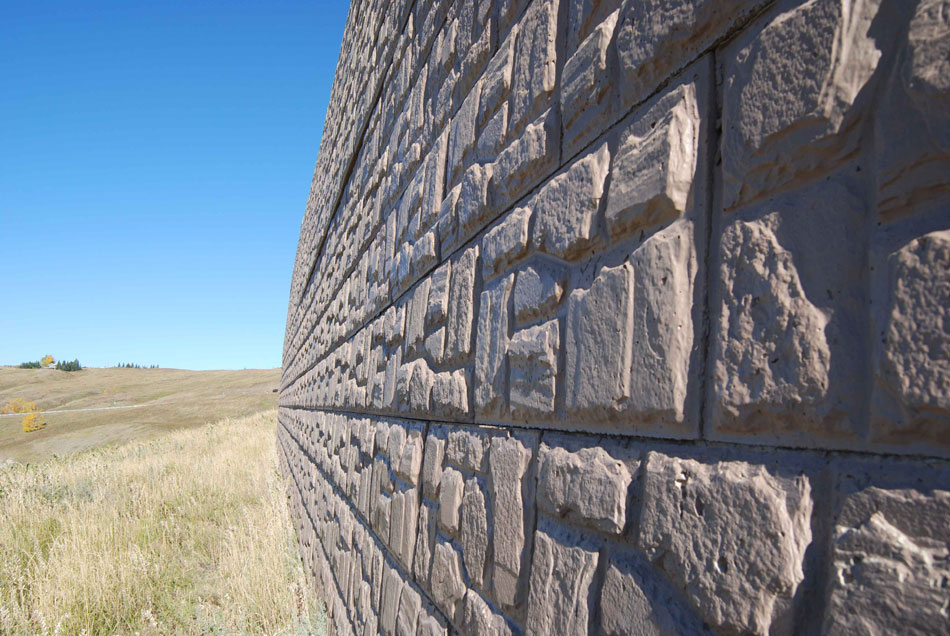

Our MagnumStone™ product is a large block, hollow core, wet-cast segmental retaining wall system that uses nearly half the amount of concrete per face foot when compared to traditional solid systems. The environmental and economical advantages of the pre-cast hollow block MagnumStone™ product are unprecedented in the retaining wall industry. MagnumStone is also available in a vertical free standing version.

Units

Standard Unit

Standard Base Unit

Standard Top Unit

Half High Unit

Half High Base Unit

Half High Top Unit

Standard Corner/End Unit

Half High Corner/End Unit

Step Cap

Unit Height Length Width Weight
Standard Unit 24″ 48″ 24″ 1370 lbs
Standard Base Unit 24″ 48″ 24″ 1345 lbs
Standard Top Unit 24″ 48″ 24″ 1220 lbs
Half High Unit 12″ 48″ 24″ 750 lbs
Half High Base Unit 12″ 48″ 24″ 725 lbs
Half High Top Unit 12″ 48″ 24″ 680 lbs
Standard Corner/End Unit 24″ 28″ 4″ 340 lbs
Half High Corner/End Unit 12″ 28″ 4″ 170 lbs
Step Cap 6″ 48″ 24″ 290 lbs

Unit Details

StoneLedge 6″ Unit PDF | CAD

StoneLedge 12″ Radius Face PDF | CAD

StoneLedge 18″Random Face PDF |CAD

Design Details

StoneLedge Pillars PDF | CAD

StoneLedge Free Standing Wall With Pillar PDF | CAD

StoneLedge Fence With Guard Rail PDF | CAD

Cross Sections

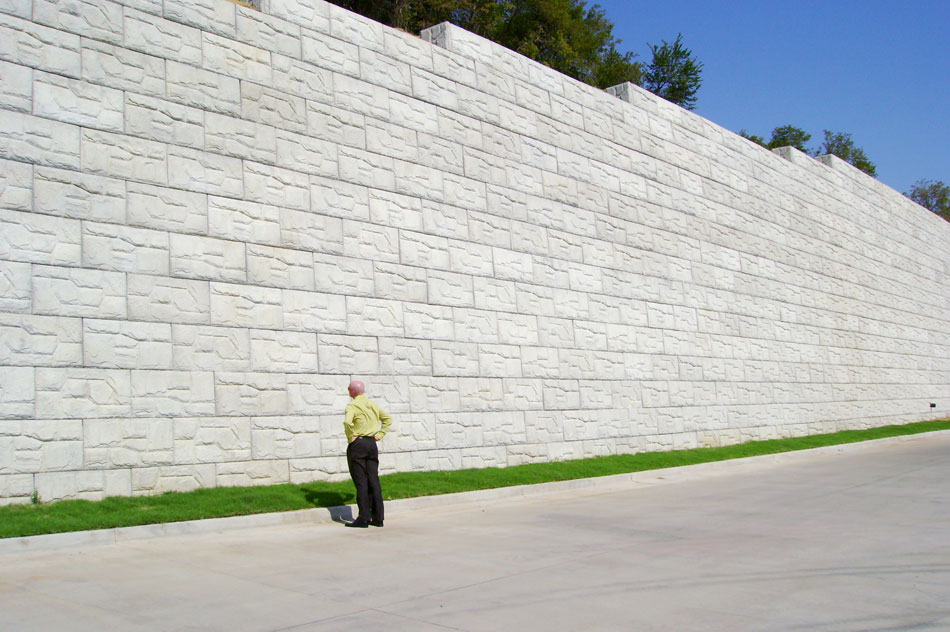

StoneLedge Geogrid Reinforced PDF | CAD

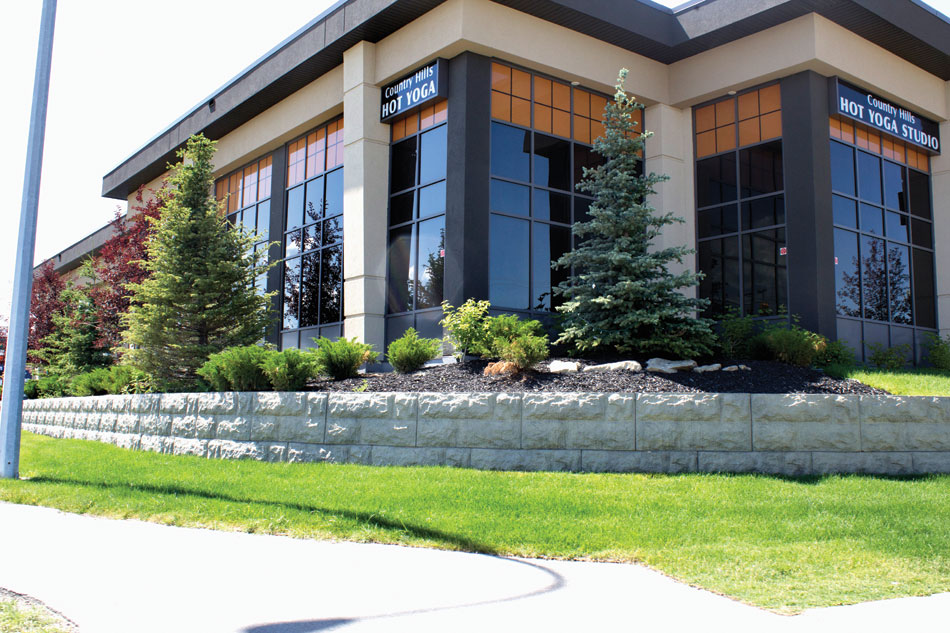

StoneLedge Gravity Wall PDF | CAD

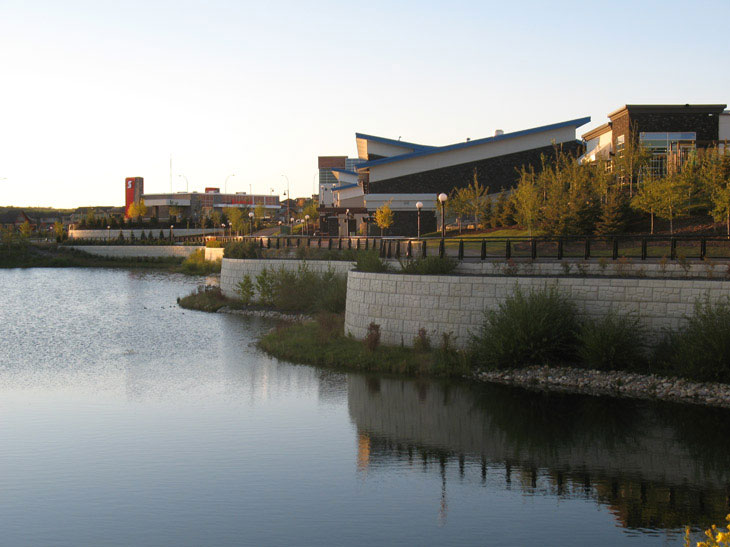

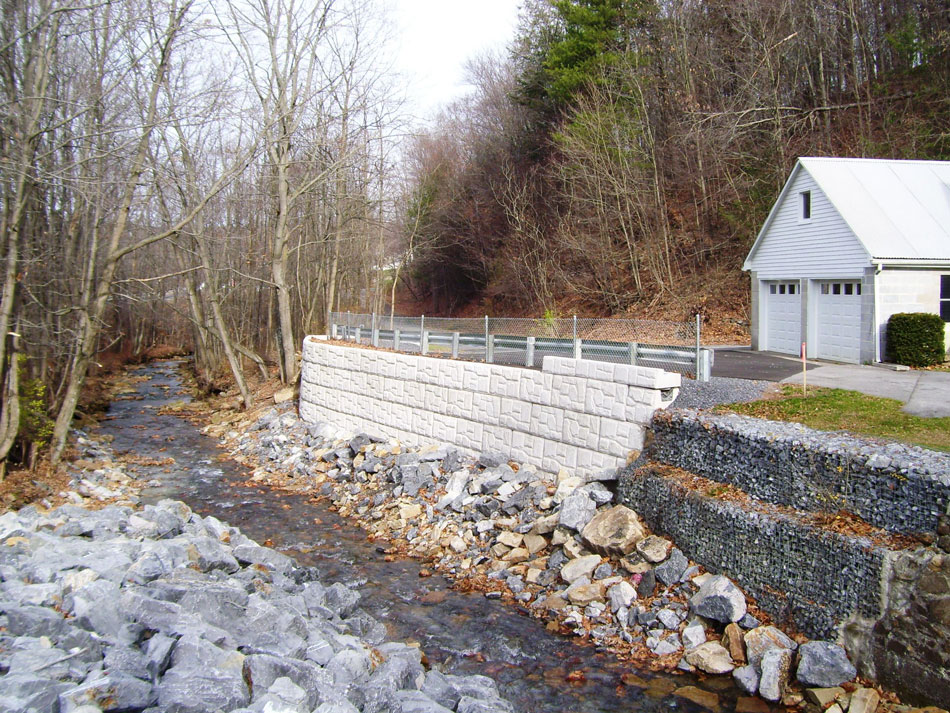

StoneLedge Water Application PDF | CAD

Specification Guides

StoneLedge Geogrid Specifications PDF | DOC

Retaining Wall Software
